EGRZV4S4-65D-R9N43 EGRZV4S4-65D-R9N43
24-port sector antenna, 2x 694-862 (R1), 2x 880-960 (R2), 2x 694-960 (R3), 8x 1695-2690 (Y1-Y2/Y4-Y5) & 2x 1427-2690 (Y3) MHz, 65° HPBW and 8x 3300-3800 (P1) MHz, 90° HPBW, 9x RET.
EGRZV4S4-65D-R9N43
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 3.0 m (10 ft)+
  • Width/Diameter: 354 – 457 mm
  • RF Connector Interface: 4.3-10 Female | MQ4 | MQ5
  • RF Connector Quantity, total: 24
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 10
  • RF Connector Quantity, low band: 6
SpecificationsSpecs
EGRZV4S4-65D-R9N43
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 3.0 m (10 ft)+
  • Width/Diameter: 354 – 457 mm
  • RF Connector Interface: 4.3-10 Female | MQ4 | MQ5
  • RF Connector Quantity, total: 24
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 10
  • RF Connector Quantity, low band: 6
EGZHHTTS4-65B-R7V2 EGZHHTTS4-65B-R7V2
22-port sector antenna, 2x 694-862 (R1), 2x 880-960 (R2), 2x 1427-2690 (Y2), 4x 1695-2180 (B1-B2), 4x 2490-2690 (Y1 & Y3) MHz, 65° 8x 3300-3800 (P1) HPBW, 7X RET. Y1 & Y3 share common RET.
EGZHHTTS4-65B-R7V2
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 354 – 457 mm
  • RF Connector Interface: 4.3-10 Female | MQ4 | MQ5
  • RF Connector Quantity, total: 22
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 10
  • RF Connector Quantity, low band: 4
SpecificationsSpecs
EGZHHTTS4-65B-R7V2
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 354 – 457 mm
  • RF Connector Interface: 4.3-10 Female | MQ4 | MQ5
  • RF Connector Quantity, total: 22
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 10
  • RF Connector Quantity, low band: 4
FFV4Q4-65B-R7 FFV4Q4-65B-R7
20-port sector antenna, 4x 617-894, 8x 1695-2690 MHz 65° HPBW and 8x 2500-4000 MHz, Beamformer, 7x RET
FFV4Q4-65B-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
SpecificationsSpecs
FFV4Q4-65B-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
FFV4Q4-65D-R7 FFV4Q4-65D-R7
20-port sector antenna, 4x 617-894, 8x 1695-2690 MHz 65° HPBW and 8x 2500-4000 MHz, Beamformer, 7x RET
FFV4Q4-65D-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
SpecificationsSpecs
FFV4Q4-65D-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
FFV4S4-65B-R7 FFV4S4-65B-R7
20-port sector antenna, 4x 617-894, 8x 1695-2690 MHz 65° HPBW and 8x 3300-3800 MHz, 90° HPBW, 7x RET
FFV4S4-65B-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
SpecificationsSpecs
FFV4S4-65B-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
FFV4S4-65B-R7-V2 FFV4S4-65B-R7-V2
20-port sector antenna, 4x 617-894, 8x 1695-2690 MHz 65° HPBW and 8x 3300-4000 MHz, Beamformer, 7x RET
FFV4S4-65B-R7-V2
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
SpecificationsSpecs
FFV4S4-65B-R7-V2
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
FFV4S4-65C-R7 FFV4S4-65C-R7
20-port sector antenna, 4x 617-894, 8x 1695-2690 MHz, 65° HPBW and 8x 3300-4200 MHz, 90° HPBW, 7x RET.
FFV4S4-65C-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
SpecificationsSpecs
FFV4S4-65C-R7
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female | M-LOC
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
NHHS4-45C-R3B NHHS4-45C-R3B
14 Port Sector Antenna, 2x 698-896 MHz, 4x 1695-2360 MHz 45° HPBW, and 8x 3400-3550/3700-4000 MHz Beamformer, 3x RETs and 3x SBTs
NHHS4-45C-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 45°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 354 – 457 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
SpecificationsSpecs
NHHS4-45C-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 45°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 354 – 457 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
NHHS4-65A-R3B NHHS4-65A-R3B
14 Port Sector Antenna, 2x698-896 MHz, 4x1695-2200 MHz 65° HPBW, and 8x3700-4000 MHz Beamformer, 3XRET
NHHS4-65A-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 1.3 m (4 ft)
  • Width/Diameter: 306 – 353 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
SpecificationsSpecs
NHHS4-65A-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 1.3 m (4 ft)
  • Width/Diameter: 306 – 353 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
NHHS4-65B-R3B NHHS4-65B-R3B
14 Port Sector Antenna, 2x698-896 MHz, 4x1695-2200 MHz 65° HPBW, and 8x3700-4000 MHz Beamformer, 3XRET
NHHS4-65B-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 306 – 353 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
SpecificationsSpecs
NHHS4-65B-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 306 – 353 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
NHHS4-65C-R3B NHHS4-65C-R3B
14 Port Sector Antenna, 2x698-896 MHz, 4x1695-2200 MHz 65 deg HPBW, and 8x3700-4000 MHz Beamformer, 3XRET
NHHS4-65C-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 306 – 353 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
SpecificationsSpecs
NHHS4-65C-R3B
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65° | 90°
  • Length Size: 2.5 m (8 ft)
  • Width/Diameter: 306 – 353 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 14
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 4
  • RF Connector Quantity, low band: 2
NNH4S4-65B-R4B-V1 NNH4S4-65B-R4B-V1
20-port sector antenna, 4x 698-896 and 8x 1695-2360 MHz, 65° HPBW, and 8 x 3400-4000 MHz, 90° HPBW, 4 x RET
NNH4S4-65B-R4B-V1
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
SpecificationsSpecs

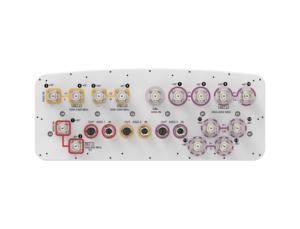

NNH4S4-65B-R4B-V1
  • Product Type: Beamforming antenna
  • Operating Frequency Band Range: 1427 – 2700 MHz | 3100 – 5000 MHz | 575 – 960 MHz
  • Horizontal Beamwidth: 65°
  • Length Size: 2.0 m (6 ft)
  • Width/Diameter: 458 – 498 mm
  • RF Connector Interface: 4.3-10 Female
  • RF Connector Quantity, total: 20
  • RF Connector Quantity, high band: 8
  • RF Connector Quantity, mid band: 8
  • RF Connector Quantity, low band: 4
Compare

Sort By:

Filters

  • Fact Sheet: New Tri-Sector Base Station Antenna from CommScope

    This document describes how the new family of tri-sector BSA with two highly customizable designs are a best-fit solution whether to upgrade an existing location or deploy a new one.
    Download

          Sort By:

          Filters

          • Fact Sheet: New Tri-Sector Base Station Antenna from CommScope

            This document describes how the new family of tri-sector BSA with two highly customizable designs are a best-fit solution whether to upgrade an existing location or deploy a new one.
            Download
